A300-600R飞机
-Lengh:
54.1m
-Maximumtake-off weight:140.0t
-Width:
44.8m
-Range:
3,890km
Cargo Door Dimension
|
|

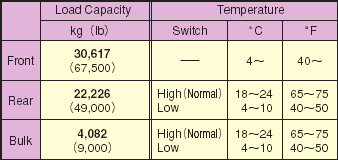

Load Capacity and Temperature of Cargo Comp't
|
 |
 |
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|

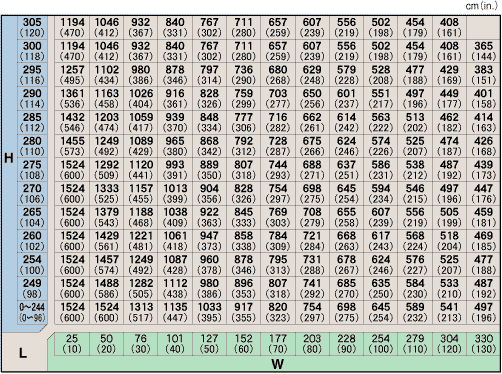

Package Size Table (Bulk)
|
|

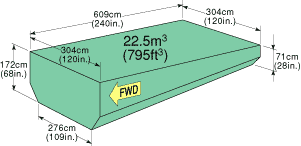

Bulk Comp't Dimension
|
 |
 |
<top> |
|
A300B2,B4飞机
-Lengh:
53.6m
-Maximumtake-off weight:137.0t/143.0t
-Width:
44.8m
-Range:
2,820km
/
3,480km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
 |
 |
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|

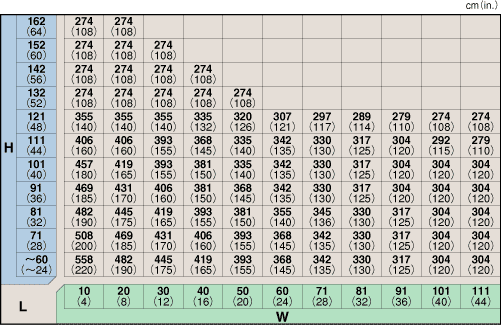

Package Size Table (Bulk)
|
|

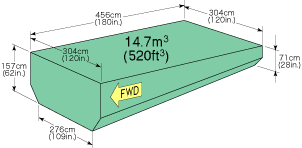

Bulk Comp't Dimension
|
 |
 |
<top> |
|

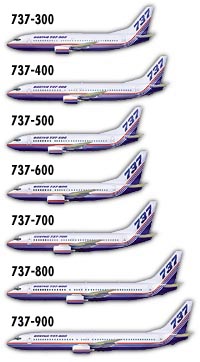

B-737飞机
-Lengh:
53.6m
-Maximumtake-off weight:137.0t/143.0t
-Width:
44.8m
-Range:
2,820km
/
3,480km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
 |
 |
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Bulk)
|
|
Package Size Table (Rear)
|
 |
 |
<top> |
|
波音747-200F飞机

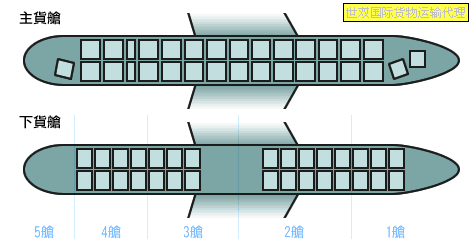

下货舱舱尺寸
前侧货舱
|
104 x
66 in
|
后侧货舱
|
104 x
66 in
|
尾侧货舱
|
44 x
47 in
|
主货舱舱尺寸
鼻端货舱
|
104 x
98 in
|
侧货舱
|
134 x
120 in
|
各装载区的最大重量及容量限制 - 下货舱
1舱
|
10354 kg
|
2P /
6A
|
2舱
|
16136 kg
|
3P /
10A
|
3舱
|
9801 kg
|
2P /
6A
|
4舱
|
13137 kg
|
2P /
8A
|
5舱
|
6749 kg
|
963 cu ft
|
· 由尾货舱 (Hold 5) 上载的货件包装规格表
|
最大容量限制 ? 主货舱
飞机最高徵?载重量
集装器重量限制 ? 主货舱
集装器
|
代码
|
最高载重量
MCI ULD wt
|
88 x 125 inch
拱形集装箱/集装箱
|
UAB, UAK, AAP
|
6033 kg
|
88 x 125 inch
集装板
|
P1P, PAG, P
1G
|
6033 kg
|
96 x 125 inch
集装板/集装箱
|
AQ6, P6P, PQP, PMC
|
6803 kg
|
96 x 238.5 inch
集装板/集装箱
(
20ft
集装板)
|
ASE, P7E
|
11339 kg
|
88 x 53 inch
集装板
|
PEB
|
B-HVX
1800 kg
B-HVY
1800 kg
B-HVZ
1800 kg
B-HIH
1300 kg
|
|
<top>
|
|
波音747F飞机
-Lengh:
70.7m
-Maximumtake-off
weight:377.8t
-Width:
59.6m
-Range:
6,500km
Cargo Door Dimension
|
|

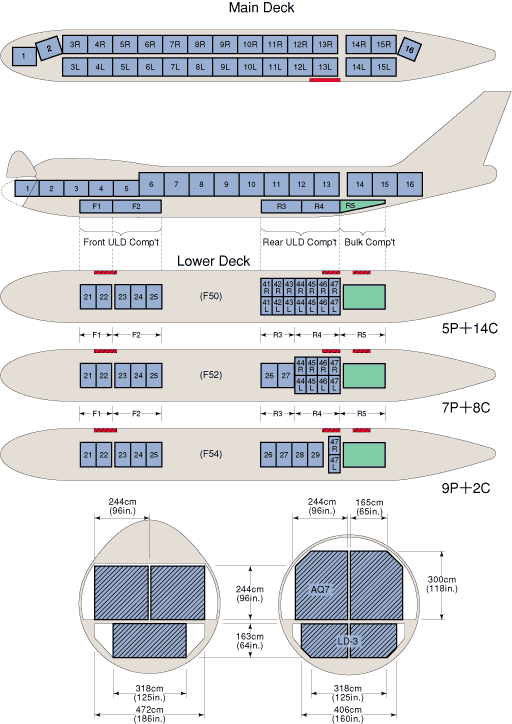

Main Deck Weight Limitation
|
|
|
*
|
JA-8161/69/93:Side Door Only
JA-8132:Nose Door Only
OTHERS:Both Nose & Side Door
|
*
|
Restrained by aircraft restraint equipment only.
|
|
|
|
|
|

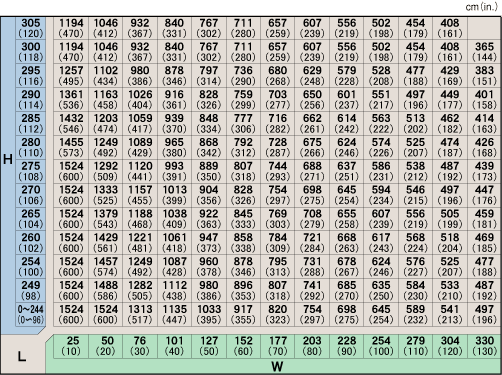

Package Size Table (Main Deck Nose Door)
Package Size Table (Main Deck Side Door)
Package Size Table (Bulk)

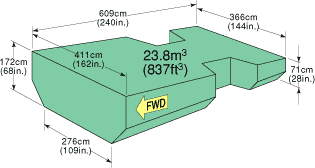

Bulk Comp't Dimension

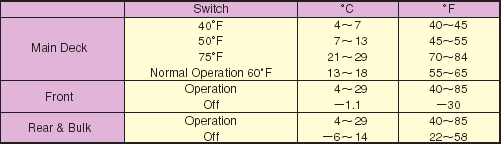

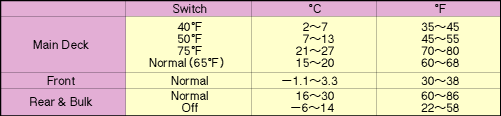

Temperature of Cargo Comp't
|
*Temperature is not guaranteed.
|
<top> |
|
波音B747F-400F飞机
-Lengh:
70.7m
-Maximum take-off weight:396.9t
-Width:
64.9m
-Range:
7,600km
Cargo Door Dimension
|
|
Main Deck Weight Limitation
|
cm (in.)
|
kg (lb)
|
|
|
|
|
*
|
Restrained by aircraft restraint equipment only.
|
|
|
|
|
|
Package Size Table (Main Deck Nose Door)
Package Size Table (Main Deck Side Door)
Package Size Table (Bulk)
Bulk Comp't Dimension
Temperature of Cargo Comp't
|
*Temperature is not guaranteed.
|
<top> |
|
波音B747飞机
-Lengh:
70.7m
-Maximumtake-off weight:385.6t
-Width:
64.9m
-Range:
12,300km
Cargo Door Dimension
|
|

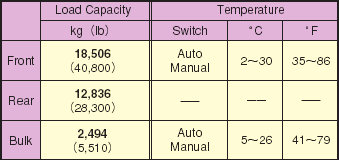

Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Bulk⋅FB747-100/200/300)

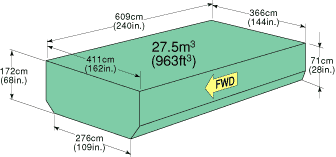

Bulk Comp't Dimension
Package Size Table (Bulk⋅FB747-400)
Bulk Comp't Dimension
<top> |
|
波音B767-200飞机
-Lengh:
48.5m
-Maximumtake-off weight:136.1t
-Width:
47.6m
-Range:
5,650km

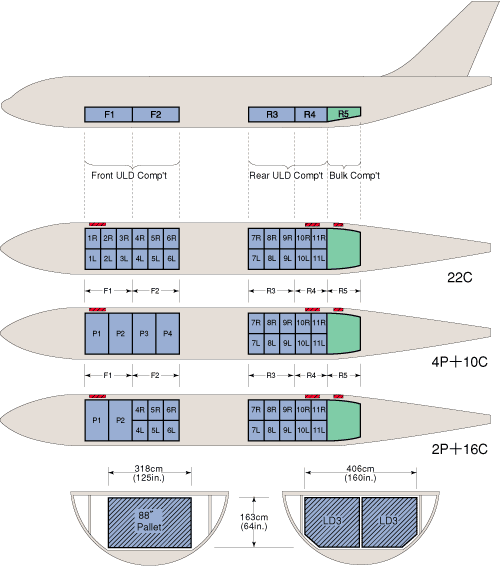

Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Bulk)
|
|
Bulk Comp't Dimension
|
|
|
<top> |
|
波音B767-300,300L,300ER飞机
-Lengh:
54.9m
-Maximumtake-off weight:182.1t
-Width:
47.6m
-Range:
9,400km

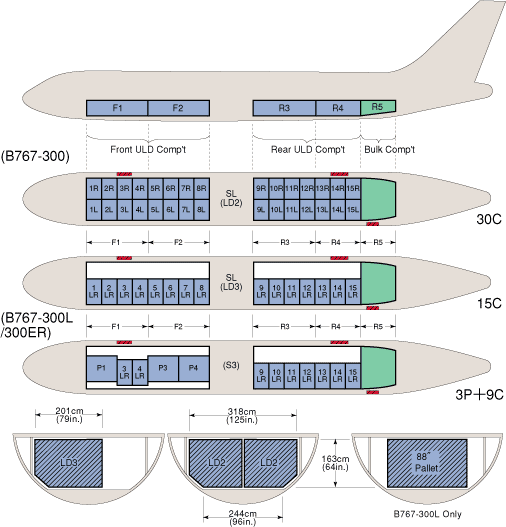

Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Bulk)
|
|
Bulk Comp't Dimension
|
|
*Internal Volume
|
<top> |
|
波音B777-200飞机
-Lengh:
63.7m
-Maximumtake-off weight:201.8t
-Width:
60.9m
-Range:
4,740km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Bulk)
|
|
Bulk Comp't Dimension
|
|
|
<top> |
|
波音B777-200ER飞机
-Lengh:
63.7m
-Maximumtake-off weight:294.8t
-Width:
60.9m
-Range:
12,600km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Bulk)
|
|
Bulk Comp't Dimension
|
|
|
<top> |
|
波音B777-300飞机
-Lengh:
73.9m
-Maximumtake-off weight:339.8t
-Width:
60.9m
-Range:
12,000km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Bulk)
|
|
Bulk Comp't Dimension
|
|
|
<top> |
|
DASH-8-400(Q400)飞机
-Lengh:
32.8m
-Maximumtake-off weight:28.0t
-Width:
28.4m
-Range:
2,146km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Front)
|
|
Package Size Table (Rear/R3)
|
|
|
Package Size Table (Rear/R4)
|
|
Package Size Table (Rear/R3+R4)
|
|
|
<top> |
|
MD-81飞机
-Lengh:
45.1m
-Maximumtake-off weight:63.5t
-Width:
32.9m
-Range:
2,740km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|

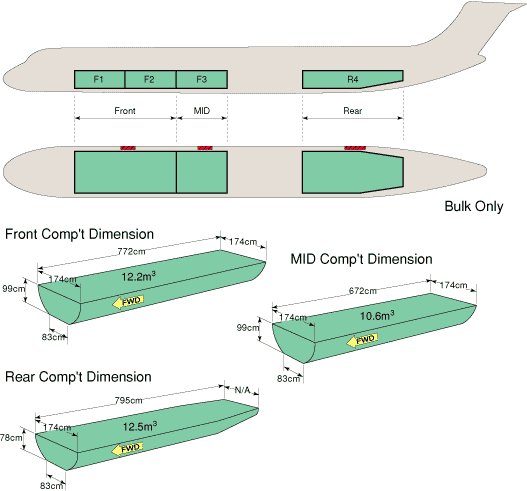

Package Size Table (Front)
|
|
Package Size Table (MID)
|
|
|
Package Size Table (Rear)
<top> |
|
MD-90飞机
-Lengh:
46.5m
-Maximumtake-off weight:70.8t
-Width:
32.9m
-Range:
2,330km
Cargo Door Dimension
|
|
Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Front)
|
|
Package Size Table (MID)
|
|
|
Package Size Table (Rear)
<top> |
|
SAAB340B飞机
-Lengh:
19.7m
-Maximumtake-off weight:12.9t
-Width:
21.4m
-Range:
1,810km

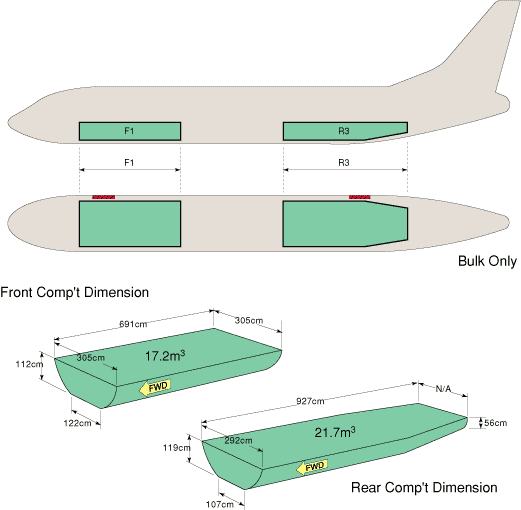

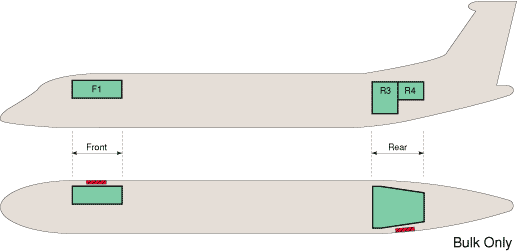

Cargo Door Dimension
|
|

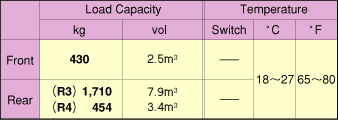

Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (R3)
|
|
Package Size Table (R4)
|
|
|
Package Size Table
(R3+R4)
<top> |
|
YS-11飞机
-Lengh:
26.3m
-Maximumtake-off weight:25.0t
-Width:
32.0m
-Range:
1,110km

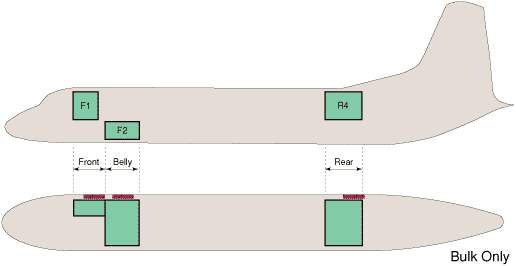

Cargo Door Dimension
|
|

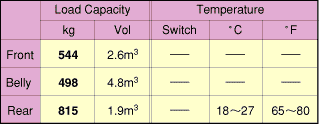

Load Capacity and Temperature of Cargo Comp't
|
|
|
|
|
*
|
Temperature is not guaranteed.
|
|
|
|
|
|
Package Size Table (Front)
Package Size Table (Belly)
Package Size Table (Rear)
<top> |
